Product Application

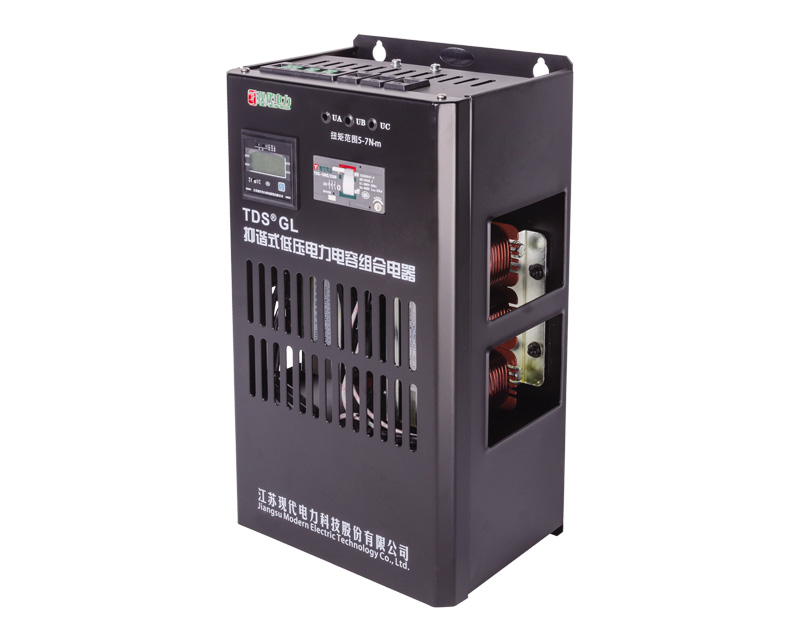

TDS (GL) Harmonic Suppression Type Low-voltage Power Capacitor Combiner is a capacitor-centered device that assembles those electric components with functions of control, measurement, signal, online communication as well as filter to form a kind of combiner. The product can be assembled, via building block approach, into low-voltage reactive power automatic compensation device in the indoor cabinet used for low-voltage reactive power compensation in the electrical environment with high harmonic content but no governance and slow reactive power change, so as to lessen the power grid loss, elevate the power grid output and improve the power grid quality.

Main Features of the Product

(1) The product can restrain and eliminate partial grid harmonic, thereby protecting the normal operation of capacitor in the electric environment with severe harmonics.

(2) Fling-cut switch is electromagnetic low-voltage compound switch , featuring small deviation of zero-crossing switching, small inrush current and voltage resistance, strong current impact, which can reliably operate in the electric environment of severe harmonics.

(3) One capacitor corresponds to one electric reactor to make sure the matching of parameters and ensure prevent the resonance caused by inconsistent parameters.
